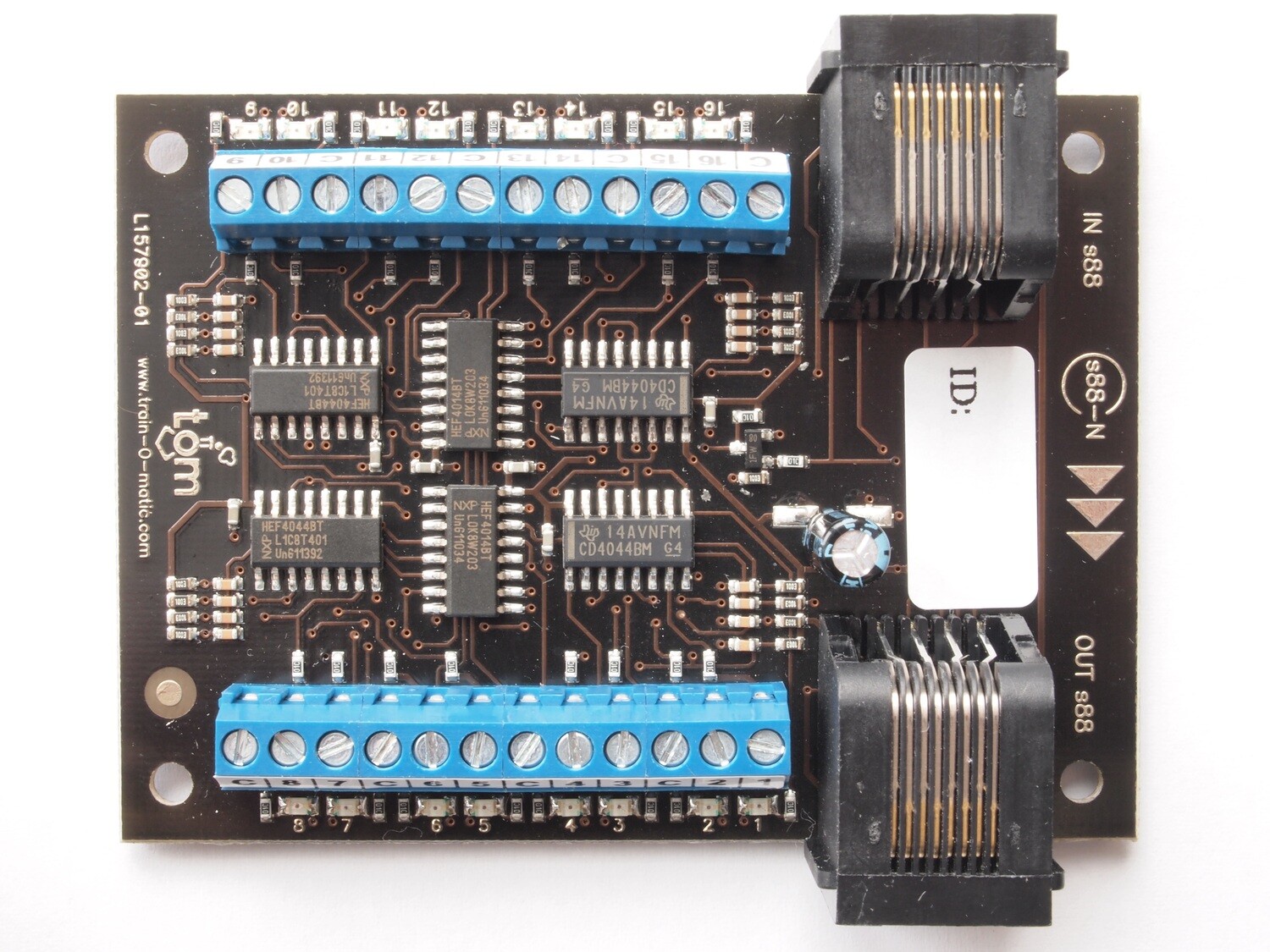

The S88N module allows transmission to the digital command station or the PC interface the status of 16 digital inputs. Such modules can be cascaded into a number of 8-16 pieces (128-256 inputs), depending on type of command station / digital interfaces. Each input is equipped with a LED control that monitors the input’s logic state: LED lit means that there is an electrically closed contact between input and common terminal (“C”); LED off means inactive input (open contact). Monitoring only works when connected to the S88N bus.
RJ45 connection allows to use standard patch cables
- Compatibility with digital S88N command stations and interfaces
- Input status signaled by control LEDs
- Easy-fitting through the 4 mounting holes (included as accessories)
Technical information:
- Number of inputs: 16
- Power supply voltage: 5-12Vdc through S88N connector
-supply current in idle state: <5 mA
- Dimensions: 65x78 mm
- Weight: 35 g
- Class of protection: IP00
- Operating temperature: 0 to +60 o C
- Storage temperature: -20 to +60 o C
- Moisture: max 85%
- Type and interface cables used: RJ45 jacks, CAT5 cable
