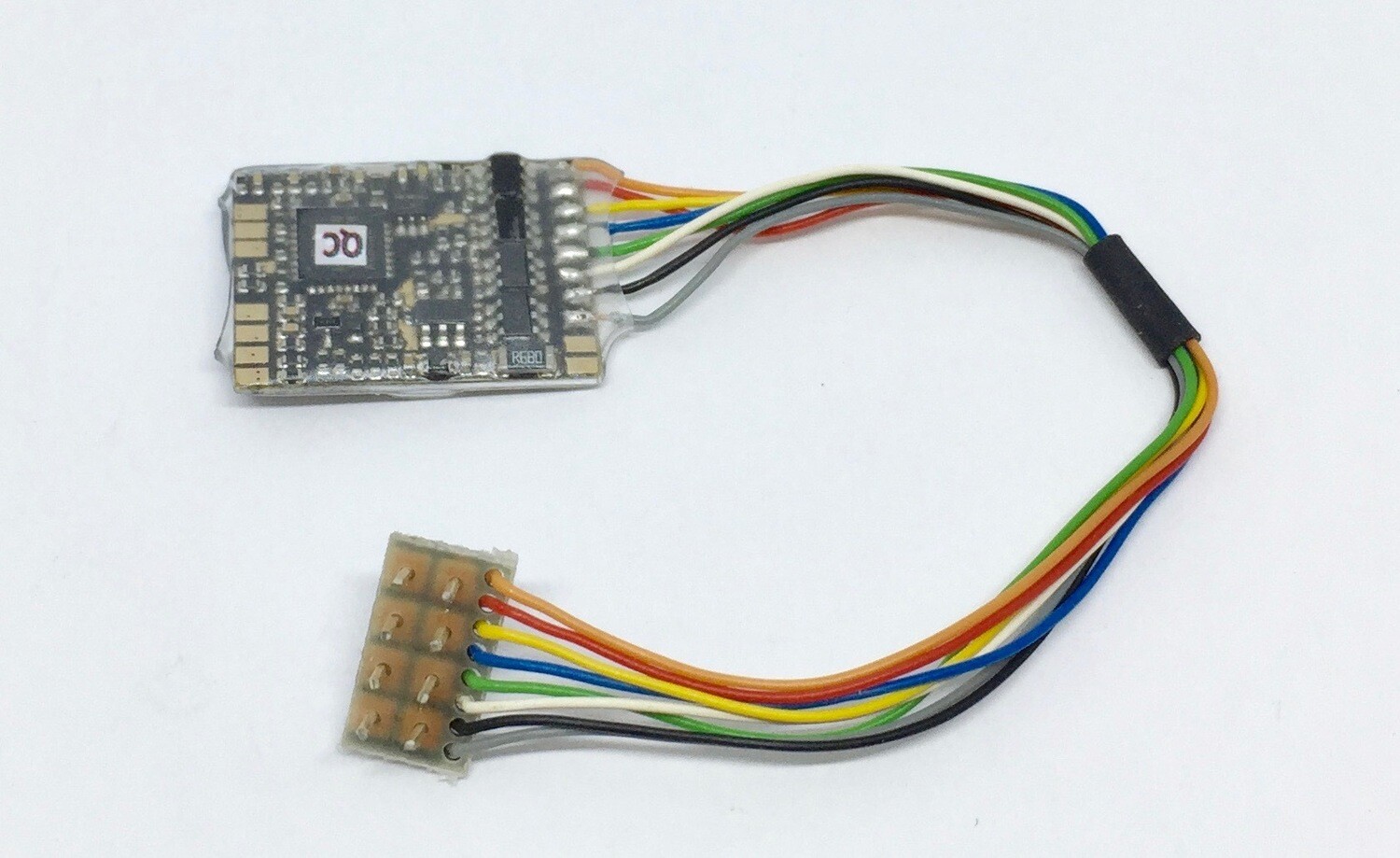

Decoder for model trains that have a 8 pin NEM652 socket, but with connection for 8 AUX functions + 2 light functions. This is much more than a standard 8 pin decoder, but the physical size is a bit larger
Part of the Lokommander 2 series
Size: 20 x 15.3 x 5 mm
- NMRA compliant DCC locomotive decoder
- Short (1-127) and long (128-9999) configurable addresses
- 14, 28/128 speed steps
- Maximum motor current 1000mA
- Load compensation and BEMF
- Speed set at 3 points (Vmin, Vmid, Vmax) or in tabular form
- Shunting speed
- Constant distance braking, activated on ABC/DC sector or at zero speed
- Reduced speed drive on ABC Slow Speed sector
- Penduling function (Push-Pull) without or with intermediar stop
- 8 + 2 (lights) dimmable auxiliary (AUX) outputs
- Function output maximum 200 mA per output, maximum of all outputs 400mA
- Output Mapping to functions F0, F1-F12
- Short-circuit and over-current protection of motor and auxiliary outputs
- Bidirectional communication RAILCOM
- SUSI© and LocoWire© interface (solder pads)
- Outputs for Smart Power Pack (SPP ©)
- Electromagnetic uncoupler drive capability
- Upgradable software via the programmer, even with the decoder mounted in the locomotive
- Usable in H0, TT and N scale models
- Supply voltage 4-24V
